IEC Standard

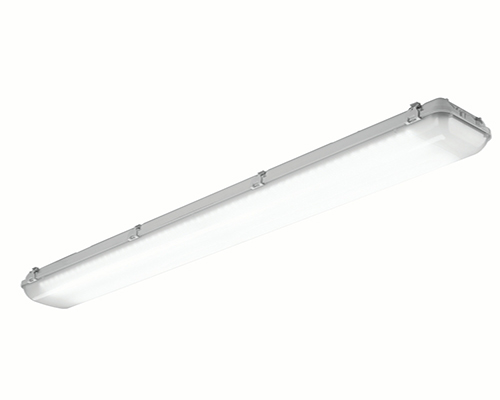

Tufflite LED is a versatile IP66 rated industrial lighting fixture. It is supplied with fast fit mounting clips for ease of installation avoids the need to drill the housing. Linear LED light engines and efficient control gear provide class leading performance; they are protected by a GRP base and polycarbonate diffuser with a high impact resistance rating of IK08. With a comprehensive range of lumen outputs across 3 luminaire lengths, Tufflite LED delivers choice and flexibility to suit a wide range of applications such as factory, warehouse, plant rooms, carparks, loading bays, storage spaces and assembly lines where high ingress protection and robust construction are required. Options include; 3 hour combined non-maintained emergency functionality, dimmable control gear and integrated lighting controls options to maximise energy savings, user comfort and control.
Features
1. Nominal 4’, 5’ and 6’ formats, in narrow and wide housings, ideal for both new and retro fit applications
2. Impact and heat resistant opal polycarbonate diffuser and GRP base housing construction, IK08 rated, and secured with anti-tamper diffuser clips
3. Deep poured continuous polyurethane gasket to maintain IP66 rating
4. Class leading LED luminaire performance and efficacy with lumen packages to match and exceed traditional fluorescent technology with reduced energy consumption
5. Integrated lighting control options to maximise energy saving, user comfort and control
6. Integral 3 hour combined non-maintained functionality option
7. Fast fix stainless steel mounting clips for rapid installation. (No need to drill the housing avoiding a potential ingress path)
